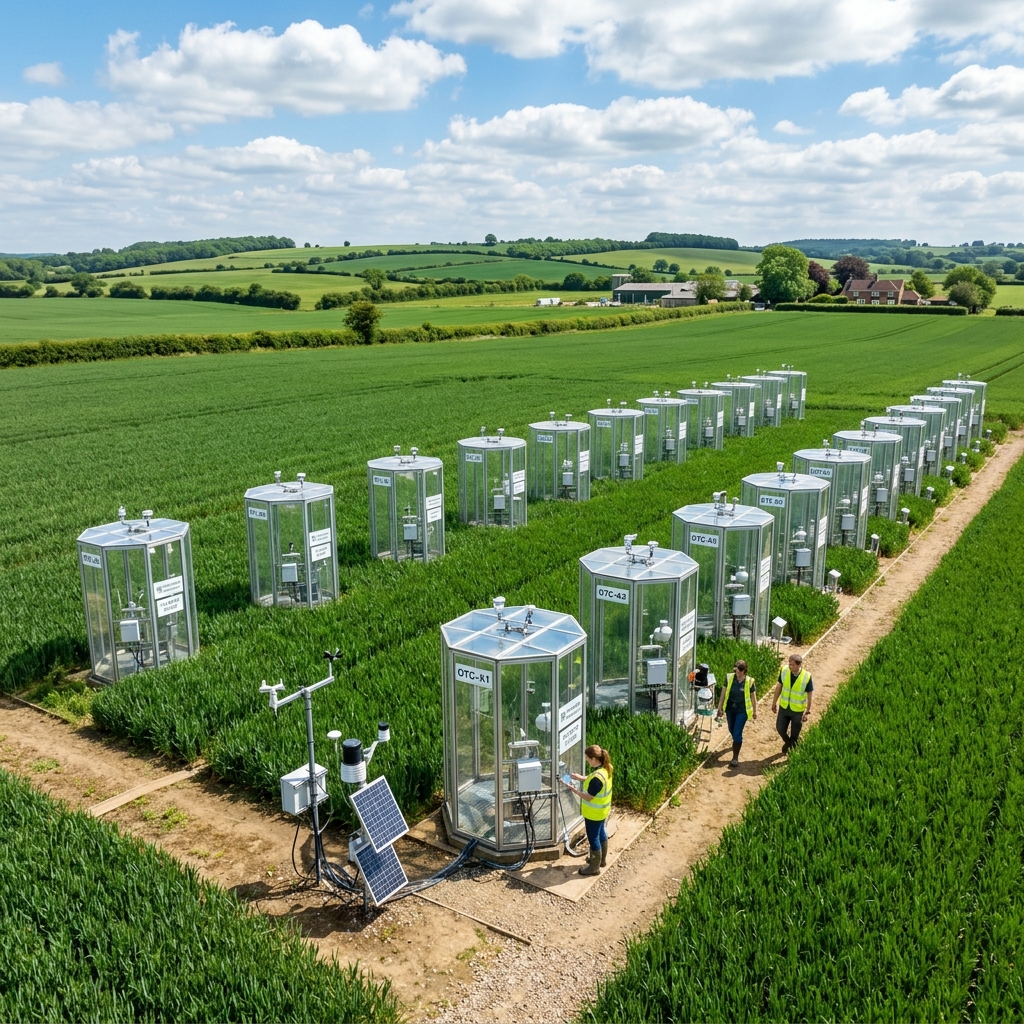

Precision Microclimate Research

Precision
Microclimate Research

Standardize plant and crop exposure studies. Our Open Top Chambers are specifically engineered to provide absolute control over carbon dioxide concentration, ambient temperature, and humidity levels inside the testing fields.

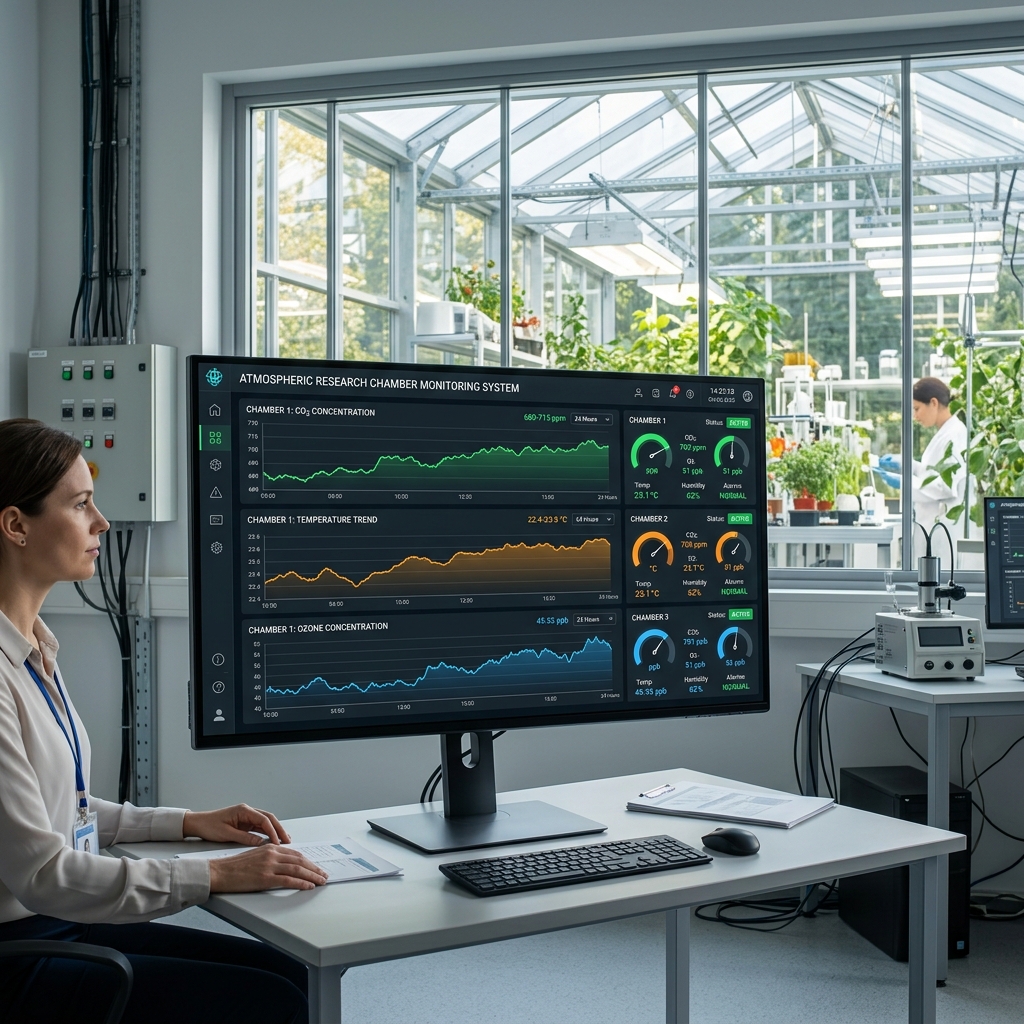

Real-Time SCADA Monitoring

Real-Time
SCADA Monitoring

Track CO2, relative humidity, and temperature trends in real-time. Equipped with a robust STM32 controller architecture and a sophisticated SCADA PC software interface for comprehensive data logging and analytics.

Research & Environment

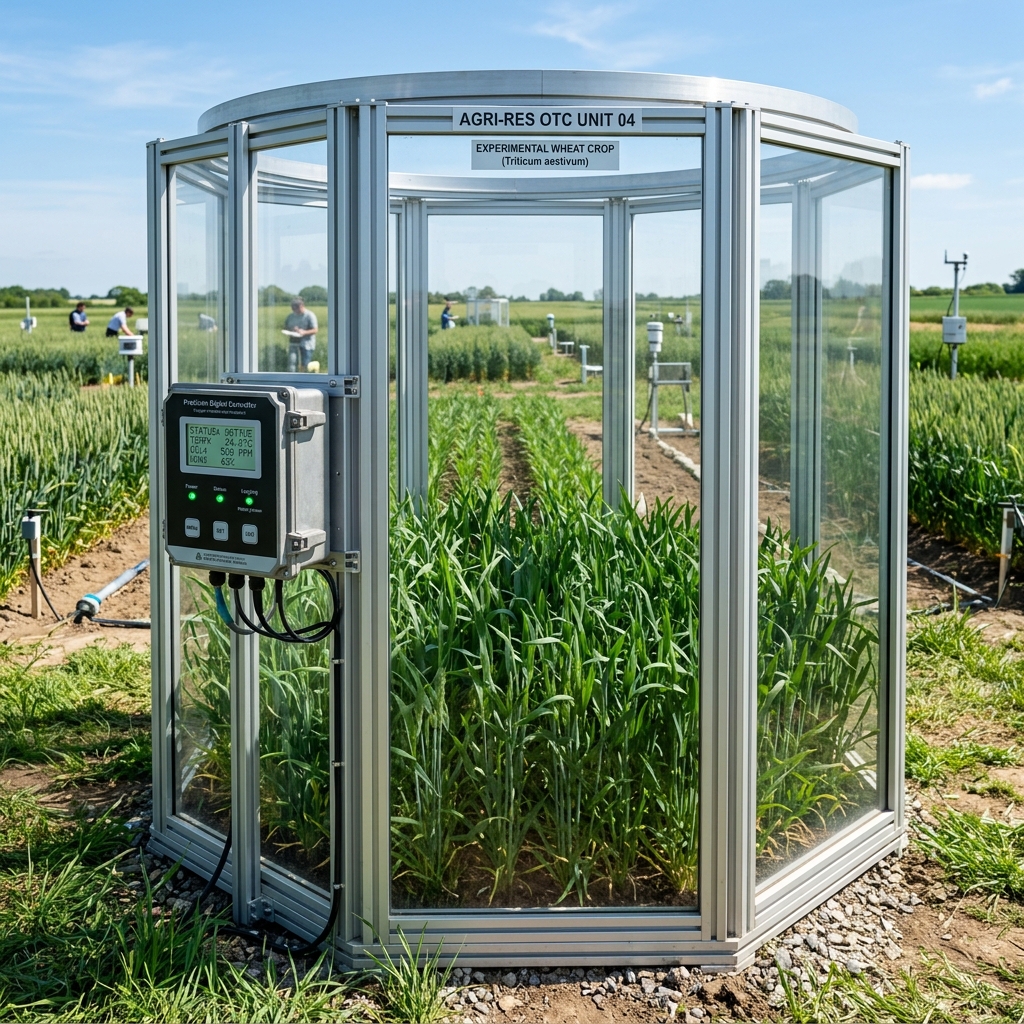

Open Top Chambers (OTC)

Precision Environmental Microclimate Control & Gas Regulation

The primary goal of our Open Top Chambers (OTCs) is to precisely manage and regulate CO2 levels, temperature, and humidity inside the chambers. This allows researchers to conduct high-fidelity investigations on how crops, trees, and plant ecosystems react to elevated carbon dioxide and other greenhouse gas concentrations under realistic field conditions.

Highly customizable solutions developed in collaboration with top agricultural universities. Category: Research & Environment | Availability: Custom Tailored.

Enquire Now
Open Top Chambers

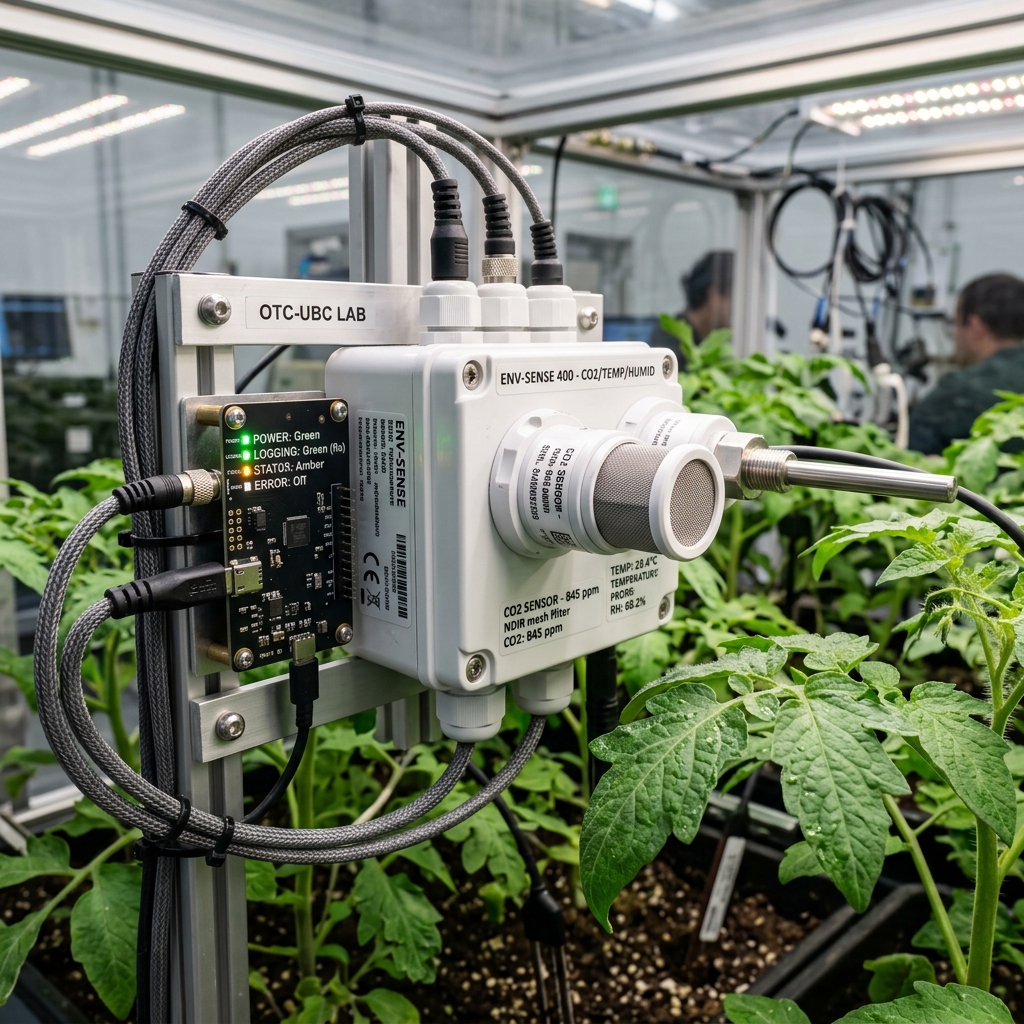

Open Top Chambers Overview
Product Overview

Product Overview

Open Top Chambers are a widely recognized, cost-effective method for studying the impact of rising greenhouse gases, ambient temperatures, and humidity gradients on crop growth kinetics, transpiration rates, and final crop yields. Our advanced automated OTC systems feed gases precisely using standard CO2 cylinder manifolds, high-performance piping, micro-solenoid manifolds, and state-of-the-art gas analyzers.

All chambers are controlled via a central, PC-linked Supervisory Control and Data Acquisition (SCADA) network. Our robust STM32-based hardware architecture guarantees accurate closed-loop control and logging of all critical agricultural variables.

01

System Features & Specifications

  • High Precision Sensors: Highly accurate NDIR CO2, Ozone, Temperature, and relative humidity sensors.
  • Custom SCADA Software: Beautiful, custom PC-linked dashboard tailored specifically to customer research goals.
  • Advanced Controllers: Precise closed-loop control using VAct's proprietary STM32F405-based high-speed processing unit.
  • Industrial Glands & Cabling: Flame-resistant cabling with weatherproof brass/nylon glands and rugged junction boxes.
  • Flexible Communications: Seamless support for Modbus RTU/TCP and standard RS485 communication protocols.
  • Weatherproof Enclosures: All sensor clusters mounted securely in custom UV-stabilized IP65 weatherproof enclosures.
  • Smart Alerts & Displays: Real-time data visualization, local LCD screen, and automated safety/error gas alarms.
  • Smart Cameras (Optional): Optional integrated high-definition cameras for live video feeds and time-lapse crop growth analysis.
